Shanghai Arcata Electronic Inc.

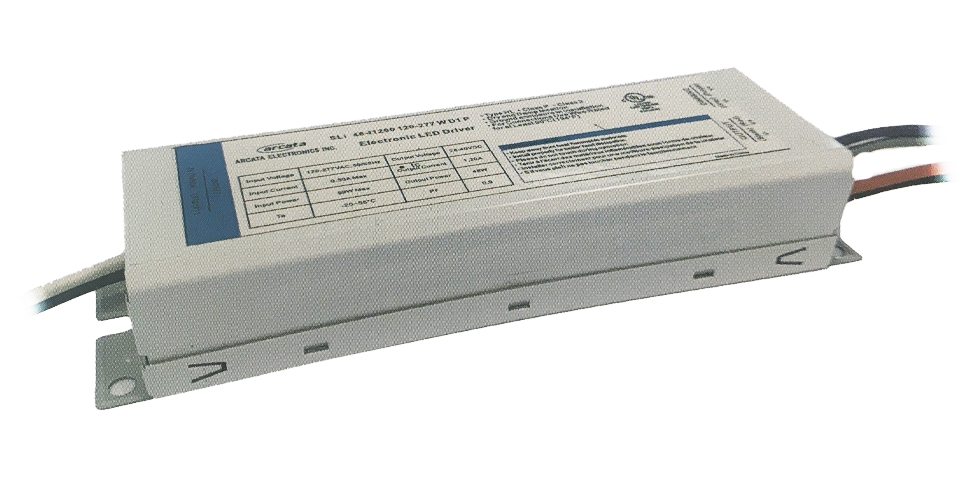

SLI 18-50 W D1 P Series

  • Input Voltage:120-277Vac
    Input frequency is 50Hz-60Hz
    0-10V Dimmable
    High Power Factor,Low THD
    Auto Recovery
    Short circuit protection
    Open circuit protection
    UL/cUL,Type TL,UL Class 2,Class P

Model Vin (V) Iin (A) PF Vout(V) Iout(mA) Pout(W) Ta(℃) Type TL / Tc(℃) Eff
SLI 25-I500 120-277 W D1 P 120-277 0.11-0.25 0.95 30-50 500 25 -20~55 85/58 88%
SLI 35-I700 120-277 W D1 P 120-277 0.14-0.34 0.95 30-50 700 35 -20~55 85/58 88%
SLI 40-I1050 120-277 W D1 P 120-277 0.17-0.40 0.95 21-38 1050 40 -20~55 85/58 88%
SLI 50-I1400 120-277 W D1 P 120-277 0.2-0.48 0.95 21-36 1400 50 -20~55 85/58 88%

Standards

UL8750 UL8750



IEC61000-3-2

FCC Part 15 Class B


Safety


  No PCB's
  UL
  Sound Rated: A

  Dimensions:
  Overall Length(L): 6''±0.1''
  Width(W): 1.78''±0.1''
  Height(H): 1.08''±0.1''
  Mounting(M): 5.7''±0.1''
