Shanghai Arcata Electronic Inc.

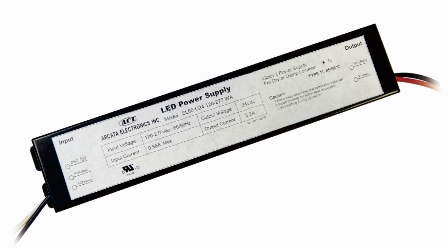

U12 Series

  • Line Voltage:120-277VAC 50/60 Hz
    Constant Voltage Output
    High Power Factor,Low THD
    Auto Recovery
    Short circuit protection
    Over-current protection
    Output voltage tolerance: ±3%
    UL/cUL,Type TL

Item No. PF Vin(V) Iin (A) Vout(V) Iout(mA) Ta(℃) Type TL(℃) Eff
SL 60-U12 120-277 WC 0.95 120-277 0.56-0.25 12 0-5000 -20~50 85/60 82%
SL60-U12 120-277 WB 0.95 120-277 0.56-0.25 12 0-5000 -20~50 85/60 82%
SL 60-U12 120-277 WA 0.95 120-277 0.56-0.25 12 0-5000 -20~50 85/60 82%




  Standards
  UL8750
  UL879
  FCC Part 15 Class A, ANSI C63.4:2009



Safety


  No PCB's
  UL
  Sound Rated: A

  Dimensions:
  Overall Length(L): 9.50''±0.1''
  Width(W): 1.70''±0.1''
  Height(H): 1.18''±0.1''
  Mounting(M): 9.00''±0.1''
