Shanghai Arcata Electronic Inc.

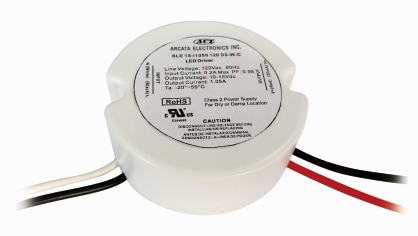

SLE 10-25 D0-W-C Series

  • Input Voltage:120Vac
    Input frequency is 50Hz-60Hz
    Triac Dimming
    High Power Factor,Low THD
    Auto Recovery
    Short circuit protection
    Over-current protection
    UL/cUL,UL Class 2

Model Vin (V) Iin (A) PF Vout(V) Iout(mA) Pout(W) Ta(℃) Type TL / Tc(℃) Eff
SLE 10-I200 120 D0-W-C1 120 0.1 0.95 44-50 200 10 -20~55 80 82%
SLE 12-I350 120 D0-W-C1 120 0.12 0.95 27-34 350 12 -20~55 80 82%
SLE 15-I500 120 D0-W-C1 120 0.14 0.95 24-30 500 15 -20~55 80 82%
SLE 18-I350 120 D0-W-C2 120 0.17 0.95 46-52 350 18 -20~55 80 82%
SLE 21-I700 120 D0-W-C2 120 0.19 0.95 24-30 700 21 -20~55 80 82%
SLE 25-I500 120 D0-W-C2 120 0.22 0.95 44-50 500 25 -20~55 80 82%
SLE 25-I1050 120 D0-W-C2 120 0.22 0.95 19-25 1050 25 -20~55 85 82%
SLE 25-I1400 120 D0-W-C2 120 0.22 0.95 13-19 1400 25 -20~55 85 82%
SLE XX-IYYY 120 D0-W-C1 120 0.2 0.95 10-50 200-1050 10-16 -20~55 80 82%
SLE XX-IYYY 120 D0-W-C2 120 0.3 0.95 13-52 350-1400 18-27 -20~55 80 82%



  Standards
  UL8750
  FCC Part 15 Class A, ANSI C63.4:2009


Safety


  No PCB's
  UL

Sound Rated: A



Dimensions:  C1:              C2:
  Diameter(Φ): 2.56''±0.1''   2.96''±0.1''

Height(H): 0.98''±0.1'' 0.98''±0.1''

Mounting(M): 2.22''±0.1'' 2.70''±0.1''
