Shanghai Arcata Electronic Inc.

ACT2S32PSUNVHE

  • • Line Voltage:120-277V 50/60Hz
    • Program Start
    • Series Lamp Operation
    • Active Power Factor Correction

Lamp Type Lamp No. Watts Min.Start Temp.(F/C) Vin(V) Iin(A) Pin(W) ATHD≤% PF≥ CF≤ BF BEF
F32T8 2 32 -20/-29 120 0.60 73 10 0.98 1.7 1.18 1.57
F32T8 2 32 -20/-29 277 0.26 72 10 0.98 1.7 1.18 1.60


Performance

Safety

· Meets ANSI Standard C82.11-2005

· No PCB’s, Type HL

· Meets ANSI Standard C62.41-2002

· UL&cUL listed (Class P, Type 1 Outdoor)

· Meets FCC 18 Non-Consumer limits

· OCV 300V

· Meets DOE energy conservation standards



Application

Physical Parameters

· Remote Mounting: 18 ft. max. Lead length, 18AWG

Length

9.5″

· Maximum Ambient Temperature:  131,55

Width

1.3″

· Sound Rated:      A

Height

1.1″

· Maximum case temperature Tc194,90

Mounting

8.9



Weight

1.10  lbs (500g)

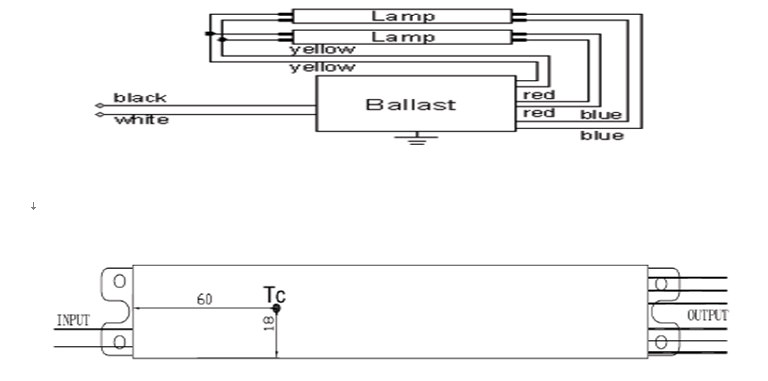

Lead Length





White, Black

25″(±1″)





Yellow

46″(±1″)





Blue,Red

31″(±1″)
