Shanghai Arcata Electronic Inc.

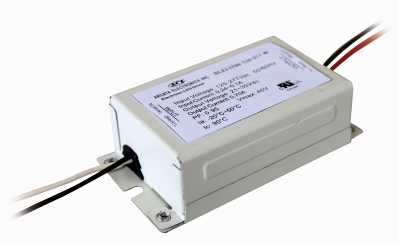

SLC 18-40 Series

  • line Voltage:120~277Vac 50/60Hz
    Constant Current Output
    High Power Factor, Low THD
    Auto Recovery
    Open Circuit Protection
    Short Circuit Protection
    Output Current Tolerance:±5%
    UL/cUL,UL Class 2,Class P

Model Vin (V) Iin (A) PF Vout(V) Iout(mA) Pout(W) Ta(℃) Type TL / Tc(℃) Eff
SLC 25-I500 120-277W 120-277 0.1-0.24 0.95 22-50 500 25 -20~50 81/80 86%
SLC 33-I1050 120-277W 120-277 0.14-0.34 0.95 16-32 1050 40 -20~50 81/80 86%
SLC 20-I500 120-277W 120-277 0.09-0.2 0.95 20-40 500 20 -20~50 81/80 86%
SLC 18-I350 120-277W 120-277 0.08-0.18 0.95 30-52 350 18 -20~50 81/80 86%
SLC 40-I1400 120-277W 120-277 0.17-0.4 0.95 16-28 1400 40 -20~50 81/80 86%
SLC 40-I1050 120-277W 120-277 0.17-0.4 0.95 20-38 1050 40 -20~50 81/80 86%
SLC XX-IYYY120-277W 120-277 0.137-0.47 0.95 16-28 1400 40 -20~50 81/80 86%




  Standards
  UL8750
  IEC61000-3-2
  FCC Part 15 Class A, ANSI C63.4:2009



Safety


  No PCB's
  UL
  Sound Rated: A

  Dimensions:
  Overall Length(L): 3.86''±0.1''
  Width(W): 2.00''±0.1''
  Height(H): 1.15''±0.1''
  Mounting(M): 3.51''±0.1''
